Aperçu.

Was macht die Komponente?

Ein Carousel zeigt mehrere Inhalte, zum Beispiel Bilder, nacheinander in einem begrenzten Bereich. Die Nutzenden blättern horizontal per Wischen, Paginator oder Pfeiltasten durch die Slides.

Wann soll die Komponente eingesetzt werden?

• Wenn mehrere ähnliche Inhalte gezeigt werden sollen, aber nicht alle gleichzeitig Platz haben.
• Wenn eine visuelle oder inhaltliche Abfolge im Fokus steht (z. B. Highlights, Kampagnen, Produkte).

Regeln.

• Ein Carousel hat nicht mehr als 7 Slides.
• Jeder Slide hat einen klaren Fokus.
• Alle Slides sind gleich gross.
• Carousels wechseln nicht automatisch, nur durch die Nutzenden.
• Bilder brauchen einen Alternativtext. Ist ein Bild verlinkt, liegt es innerhalb des Links.

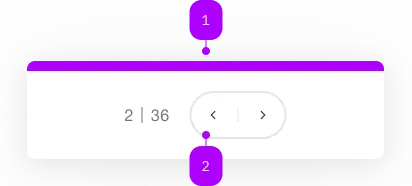

Éléments.

Ce composant se compose d’un élément principal et de ses parties. N’utiliser les parties qu’à l’intérieur de l’élément auquel elles appartiennent.

• sbb-carousel

  Parties – uniquement dans sbb-carousel :

  • sbb-carousel-item
  • sbb-carousel-list

Spécification.

Web Components.

Le web component se trouve dans le paquet @sbb-esta/lyne-elements.

Documentation.

The <sbb-carousel> is a slideshow component that can be used to display a
series of items, as images, once at a time, allowing users to cycle
through them via horizontal scrolling or using controls (e.g. a paginator).

The component must be used together with a
sbb-compact-paginator
and a <sbb-carousel-list>, which accepts one or more <sbb-carousel-item>.

<sbb-carousel>
  <sbb-carousel-list>
    <sbb-carousel-item>
      <img src="../img-1.jpg" alt="Image 1" height="300" width="400" />
    </sbb-carousel-item>
    <sbb-carousel-item>
      <sbb-image
        image-src="../image.jpg"
        alt="SBB image"
        style="width: 800px; height: 600px;"
      ></sbb-image>
    </sbb-carousel-item>
    <sbb-carousel-item>
      <div class="sbb-image">
        <img src="../image.jpg" alt="SBB image" height="300" width="400" />
        <figcaption>Caption for picture</figcaption>
      </div>
    </sbb-carousel-item>
  </sbb-carousel-list>
  <sbb-compact-paginator></sbb-compact-paginator>
</sbb-carousel>

The length and the pageSize properties of the <sbb-compact-paginator>
are automatically set based on the number of slotted images.

The values of the accessibilityPageLabel, accessibilityPreviousPageLabel and accessibilityNextPageLabel properties
are also set, in order to automatically override the 'page' keyword to the 'slide' one.
If needed, consumers can provide their own values.

The <sbb-carousel-item> supports native img tags, <sbb-image>, picture
and also custom content, appropriately formatted.
Since it doesn't have a fixed size, it's important for consumers to define
the dimensions of slotted images to correctly render the component.

Interactions.

It's possible to switch between items using the paginator controls, or, if the component is focused, using the arrow keys.

Events.

The <sbb-carousel-item> component provides the two events beforeshow
and show; their dispatch is related to scroll events in the
<sbb-carousel-list>.
The beforeshow is dispatched when an item is being scrolled into view
and the show is dispatched when the item is fully visible.

Style.

The carousel determines its dimensions by reading the dimensions from the first slotted <sbb-carousel-item> element.
It is the consumers' responsibility to set the correct height and width of the items, and to ensure that they are all the same size.

These dimensions are read only once, when the component is first connected to the DOM or first becomes visible.
In special cases, such as when the carousel size needs to be responsive, it is recommended to manually
set the width and height CSS properties on the <sbb-carousel-list> element.
Manually set dimensions will take precedence over the automatically read dimensions.

Accessibility.

Following the ARIA carousel pattern,
the <sbb-carousel> component has role="region" and aria-label="carousel" and the <sbb-carousel-list> component has aria-atomic='true' and aria-live='polite'.
If no aria-label is provided on the slotted <sbb-carousel-item>
instances, the component sets a default value on them..

To not break the accessibility when links are used together with images, please place the image within the anchor tag.

<sbb-carousel>
  <sbb-carousel-list>
    <sbb-carousel-item>
      <a href="#" target="_blank">
        <img src="../img-1.jpg" alt="SBB image" height="300" width="400" />
      </a>
    </sbb-carousel-item>
    ...
</sbb-carousel>

Angular.

Ce composant est également disponible pour Angular dans le paquet @sbb-esta/lyne-angular.

class: SbbCarouselElement, sbb-carousel.

Properties.

Slots.

class: SbbCarouselItemElement, sbb-carousel-item.

Events.

Slots.

class: SbbCarouselListElement, sbb-carousel-list.

Slots.
